The company that turned chipmaking into a system
TSMC’s dominance is often described as a manufacturing lead, but that undersells what the company actually built. It did not simply get better at making chips. It helped define the modern foundry model: a company that makes semiconductors for other firms, at industrial scale, using a process discipline so consistent that the world’s biggest chip designers now plan their roadmaps around it.
That matters because chipmaking is not one race. It is a chain of highly technical decisions that begin with transistor design and end with packaging, testing, yield management, and supply assurance. TSMC’s strength is that it has organized all of those steps into one coherent business strategy. That strategy has made it the default manufacturing partner for leading-edge products from companies such as Apple, NVIDIA, AMD, and Qualcomm, while also giving it leverage over the future of high-performance computing.
To understand why TSMC dominates, it helps to stop thinking of a fab as a factory in the usual sense. A semiconductor fab is more like an orchestration engine for physics. Every layer of the process—lithography, etch, deposition, materials purity, defect control, inspection, and packaging—must be managed with extreme precision. Small improvements compound. Small mistakes can erase margins or sink a node entirely. TSMC’s advantage is that it has made those compounding effects work in its favor for decades.
Foundry specialization changed the economics of chips
The semiconductor industry used to be more vertically integrated. Companies designed chips and manufactured them in-house, which made sense when process complexity was lower and product cycles were slower. Over time, the cost of keeping pace with leading-edge manufacturing exploded. New nodes require enormous capital investment, highly specialized equipment, and deep process know-how. EUV lithography alone is an illustration of the barrier: the tools are expensive, the integration is difficult, and the learning curve is steep.
TSMC’s early bet was that most chip companies would eventually prefer to focus on design rather than fabrication. That prediction changed the industry’s structure. Instead of every major chip designer building its own bleeding-edge fabs, many moved to a fabless model and outsourced production to TSMC. The company then scaled around that demand, recycling its manufacturing learning across a large customer base.
This is the key structural point: the foundry model turned process excellence into a shared platform. When TSMC improves a node, a packaging flow, or a yield-management system, those gains can be monetized across many customers and many product categories. That gives the company a powerful economic engine that pure-play manufacturers or vertically integrated rivals struggle to match.
Execution at advanced nodes is the real moat
In semiconductors, “advanced node” is not just a marketing label. It refers to the ability to build smaller, denser, more power-efficient transistors using increasingly difficult manufacturing techniques. As transistors shrink, the physical and economic penalties of error rise. A modern node is not only about transistor dimensions; it is about defect density, variability, power delivery, and overall manufacturability.
TSMC became dominant because it consistently translated node transitions into volume production. That distinction is crucial. Many companies can demonstrate a process in a lab. Far fewer can produce millions of chips with acceptable yields, predictable performance, and enough reliability for customers shipping products worldwide.
Customers do not buy theoretical capability. They buy timelines, consistency, and the ability to launch finished products. TSMC’s reputation rests on making that reliability routine. For companies like Apple, which cares about efficiency and time-to-market for flagship devices, or NVIDIA, which depends on stable supply for data center accelerators, manufacturing consistency is not a side issue. It is the product.
The company’s process discipline also lowers risk for its customers. Designing a chip for a new node is expensive, and the cost of a missed tape-out or a weak yield can be severe. TSMC’s ecosystem—design rules, process design kits, customer support, and long-standing manufacturing know-how—reduces uncertainty for the firms building the chips. That kind of trust is hard to replicate and easy to underestimate.
Scale matters, but only because it compounds learning
TSMC is large, but size alone does not explain its advantage. In semiconductors, scale only becomes strategic when it improves learning and utilization. Leading-edge fabs require staggering capital expenditures, and their economics depend on keeping expensive equipment productive. A modern fab with underused tools burns cash quickly. A fab with strong utilization can spread fixed costs over more wafers and more successful parts.
TSMC’s scale gives it two advantages at once. First, it can invest continuously in the next generation of process technology because its revenue base is broad and diversified. Second, it can absorb and learn from a wide variety of chip designs, from mobile processors to AI accelerators to networking silicon. That diversity gives the company unusually rich process feedback.
There is also a simple operational fact: the more wafers a company processes, the more opportunities it has to identify defects, optimize recipes, and refine production. Semiconductor manufacturing is full of subtle interactions among temperature, chemical deposition, mask alignment, and tool calibration. Scale converts those interactions into data, and data converts into better yields. That loop is one of TSMC’s most durable advantages.
Packaging became strategic when chips became modular
For years, the semiconductor conversation focused heavily on transistor scaling. But as Moore’s Law has become harder and more expensive to extend, packaging has moved from a back-end step to a strategic capability. This is especially true for AI and high-performance computing, where the bottleneck is not just transistor density but how much compute, memory, and I/O can be connected efficiently.
TSMC understood this shift early. Advanced packaging technologies such as CoWoS and related 2.5D integration approaches are now central to the company’s role in AI supply chains. These techniques let customers combine multiple dies, integrate high-bandwidth memory, and build systems that would be harder or less efficient to realize on a single monolithic chip.
That is a major reason TSMC has become even more important in the GPU era. NVIDIA’s most advanced data center products depend not only on leading-edge logic manufacturing but also on sophisticated packaging capacity. In practice, that means the bottleneck in AI hardware is not just which node a chip uses, but how quickly the entire package can be assembled, tested, and shipped. TSMC sits at the center of that bottleneck.
This packaging advantage illustrates a broader point: TSMC does not merely follow demand. It helps create the production architecture that determines which products are feasible at all. As chips become more modular, the ability to integrate them efficiently becomes a source of power equal to transistor scaling itself.
Customer trust is an industrial asset
TSMC’s customer relationships are unusually sticky because the cost of switching is enormous. A chip design is not a generic object that can be moved from one fab to another with a few adjustments. Porting a design to a different manufacturing process can require substantial rework, new validation, updated timing models, and fresh supply-chain coordination. That lock-in is technical, not contractual.
But technical lock-in alone does not create dominance. Customers also stay because TSMC has built a reputation for execution under pressure. In a market where product launches are tied to holiday seasons, smartphone refresh cycles, or data center deployment schedules, schedule risk is costly. A supplier that repeatedly delivers on time becomes more valuable than a cheaper but less predictable alternative.
This is where company strategy becomes market structure. TSMC’s reliability has made it the standard option for leading-edge manufacturing, and that standard status reinforces itself. The most ambitious chip designers want access to the best process technology, which attracts more of the best designs, which improves utilization, which finances more process investment. The loop is hard to interrupt once it is established.
Why rivals have not easily closed the gap
TSMC’s position is often discussed alongside Intel and Samsung Foundry, but comparisons can be misleading if they ignore business model and execution history. Intel remains one of the industry’s most important chip companies, but it has had to manage the burden of legacy product lines, manufacturing turnaround efforts, and a changing internal structure. Samsung has deep semiconductor capabilities and major capital strength, but foundry leadership depends on more than having fabs; it depends on ecosystem depth, customer confidence, and a long track record of process execution.
The challenge for any rival is that TSMC’s advantage is cumulative. It is not a single breakthrough that can be copied. It is a layered system built from process integration, customer relationships, packaging capability, engineering talent, and sustained capital allocation. Each layer makes the next one more effective.
That does not make the company invulnerable. Geopolitical risk is real because TSMC’s core manufacturing base is concentrated in Taiwan, and semiconductor supply chains remain exposed to trade restrictions, export controls, and regional instability. The push for geographic diversification—new fabs in Arizona and elsewhere—is a reminder that the market sees concentration as both a strength and a vulnerability. But diversification takes time, and time is the one thing leading-edge semiconductor manufacturing is always trying to compress.
The deeper reason TSMC dominates
TSMC dominates global chip manufacturing because it made a disciplined bet on specialization and executed that bet longer, better, and at larger scale than anyone else. It recognized that the most valuable part of the semiconductor stack was not owning every chip design, but owning the manufacturing system that could reliably produce the world’s most important ones.
That strategy reshaped the industry. It helped create the modern fabless ecosystem. It made advanced node access into a competitive prerequisite for chip designers. It elevated packaging into a strategic layer of the compute stack. And it turned manufacturing execution into a source of market power that now extends from smartphones to AI accelerators and beyond.
In other words, TSMC’s dominance is not an accident of timing. It is the result of a business model that aligns technical complexity with economic scale. In semiconductors, that alignment is rare. Once it exists, it is very hard to dislodge.
Sources and further reading
- TSMC Annual Reports and Investor Relations materials
- TSMC Technology Symposium presentations
- ASML documentation on EUV lithography
- U.S. Department of Commerce CHIPS Program materials
- Intel and Samsung Foundry public strategy and technology updates
- Industry analysis from SEMI and IEEE publications

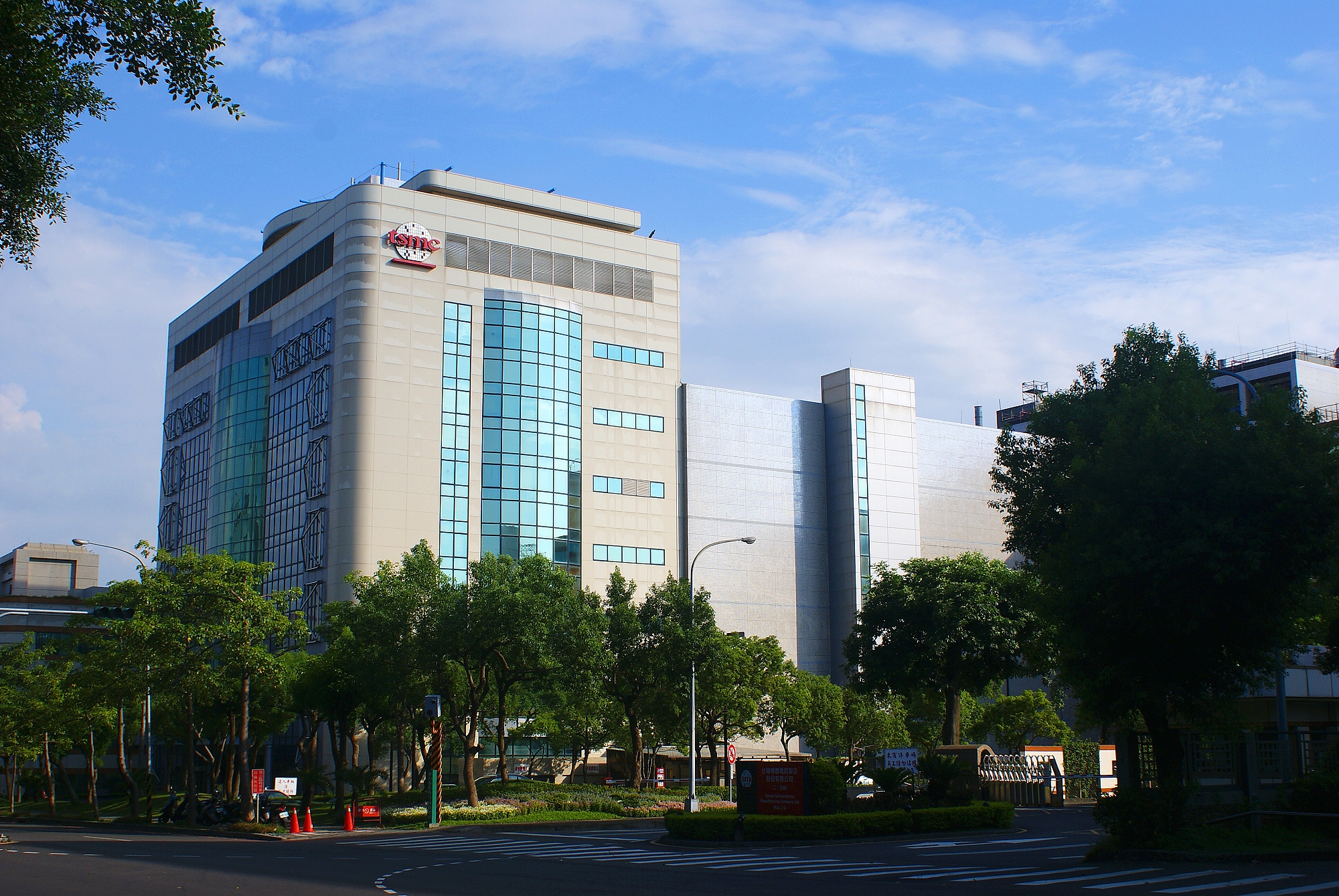

Image: TSMC Fab5.JPG | Own work | License: CC BY-SA 3.0 | Source: Wikimedia | https://commons.wikimedia.org/wiki/File:TSMC_Fab5.JPG
